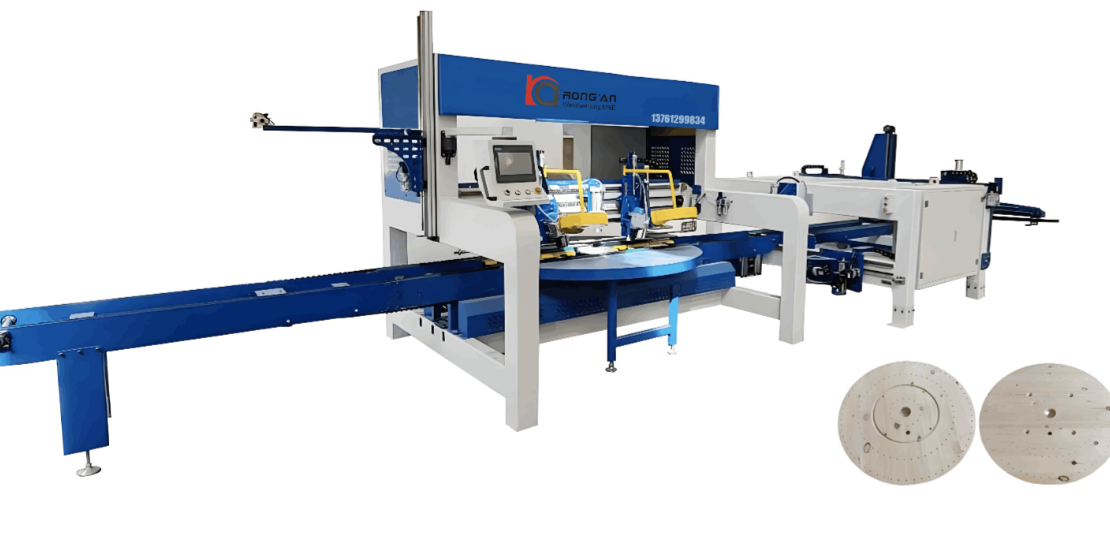

The solid wooden cable reel automatic production line is developed for the manufacturing of large and medium size wooden cable drums used in power cable, communication cable, optical fiber cable and industrial wire applications. The system is suitable for customers in Southeast Asia, Middle East and other developing cable markets where durable wooden cable reels are widely used for transportation and storage.
This wooden cable drum production equipment combines CNC cutting, automatic board positioning, hydraulic flange pressing, center barrel forming, nailing and automatic discharge into a coordinated cable reel assembly line. Compared with traditional manual wooden reel production, the automated wood cable spool machine reduces labor dependence while improving dimensional consistency and production stability.
The production line can process solid timber materials such as pine, eucalyptus or mixed hardwood, depending on customer requirements. It supports customized cable reel diameter and width according to export or domestic standards, including ISPM15 heat-treatment compliant wooden cable drums for international shipment.
Main functional sections of the wooden cable reel manufacturing system include:
• Solid wood slat cutting and sizing unit
• CNC flange shaping and circular cutting system
• Hydraulic cable flange press machine
• Automatic wooden drum assembling and nailing station
• Center core forming and fixing module
• Edge trimming and surface finishing unit
• Automatic unloading and stacking conveyor
The integrated control system adopts PLC control with touch screen interface, allowing parameter adjustment for different wooden cable drum sizes. Servo driven positioning ensures accurate assembly of flange and barrel structure, improving roundness and structural stability of the finished wooden cable reel.
This automatic wood cable reel production line is suitable for cable factories that require continuous production of heavy-duty wooden cable drums for power cable transportation and industrial packaging.
（Technical Parameters）
Production Capacity: 40–120 pieces per shift (depending on size and configuration)
Applicable Reel Diameter: 600 mm – 2200 mm
Reel Width Range: 400 mm – 1600 mm
Flange Thickness: 30 mm – 80 mm
Material Type: Solid wood (pine, eucalyptus, hardwood)
Control System: PLC + Touch Screen
Power Supply: 380V / 50Hz (customizable)
Air Pressure: 0.6–0.8 MPa
Operation Mode: Automatic or Semi-Automatic Optional
Compliance: ISPM15 heat treatment compatible design
（Application）
Power cable manufacturers
Optical fiber cable producers
Industrial wire suppliers
Export cable packaging factories
Woodworking machinery investors
