Slot Board Milling Machine - Efficient MDF Processing for T-Slot, Dovetail, and Beveled Slots

The slot board milling machine is designed for MDF and multi-slot board processing, supporting T-slot, dovetail, and beveled slot cutting. Equipped with a conveyor feed system and independent high-speed motors, it ensures smooth processing, precise slots, and neat board surfaces, suitable for mall racks, display boards, and wall-mounted panels.

Online inquiry

Previous Next

Detailed content Specification parameter

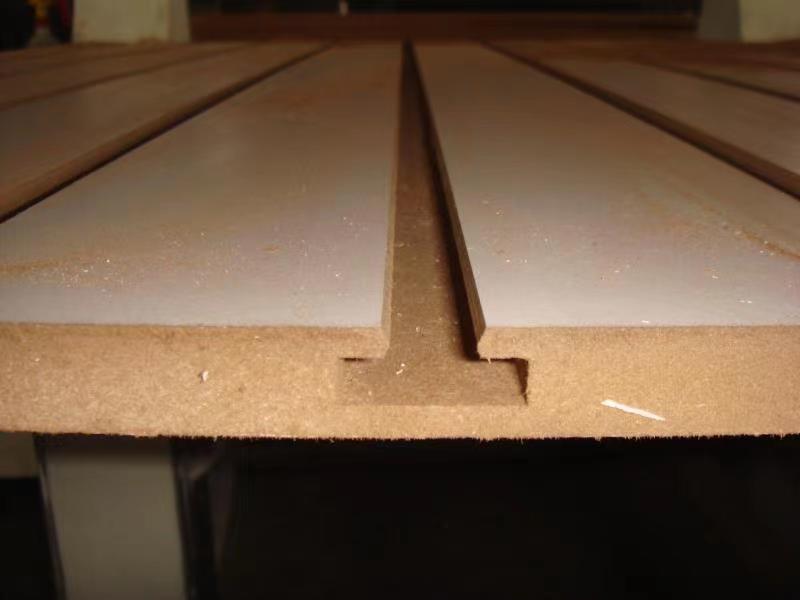

This MDF slot board milling machine processes multi-slot boards, including T-slots, dovetail slots, and beveled slots. Suitable for MDF, density boards, and particleboards. Each slot is driven by an independent motor, ensuring stable processing and precise slot dimensions. Boards up to 2440 mm width can be processed in two passes of 1220 mm.

Key Advantages

Efficient processing: Multiple slots processed simultaneously for steady output.
Precision control: Independent motors ensure smooth slot cutting and neat surfaces.
Customizable: Slot numbers and spacing adjustable per client requirements (6.5, 9, 14, 28, 56 divisions).
Conveyor feed system: Stable board feed reduces errors and ensures continuous production.
Wide application: Suitable for mall racks, display boards, wall-mounted panels, and multi-slot boards.
Easy operation: Integrated feed, cutting, and control system for simple operation and maintenance.

Applications

Mall racks, specialty store display boards
Wall-mounted panels and multi-slot board processing
MDF, furniture panels, and display equipment
T-slot, dovetail, beveled slot cutting

Item	Specification
Working Width	1220 mm (2440 mm boards processed in two passes)
Time Forming Slot Number	13 slots
Cutter Motor Power	3 kW × 13 (variable frequency)
Conveyor Power	1.5 kW (variable frequency)
Voltage	380 V / 50 Hz
Feed Speed	2.44 m/min
Processable Boards	MDF, density board, particleboard, various thicknesses and colors
Slot Division	6.5 / 9 / 14 / 28 / 56 divisions (customizable)
